Axial Flux Motor Series
Choose from our comprehensive range of axial flux motors

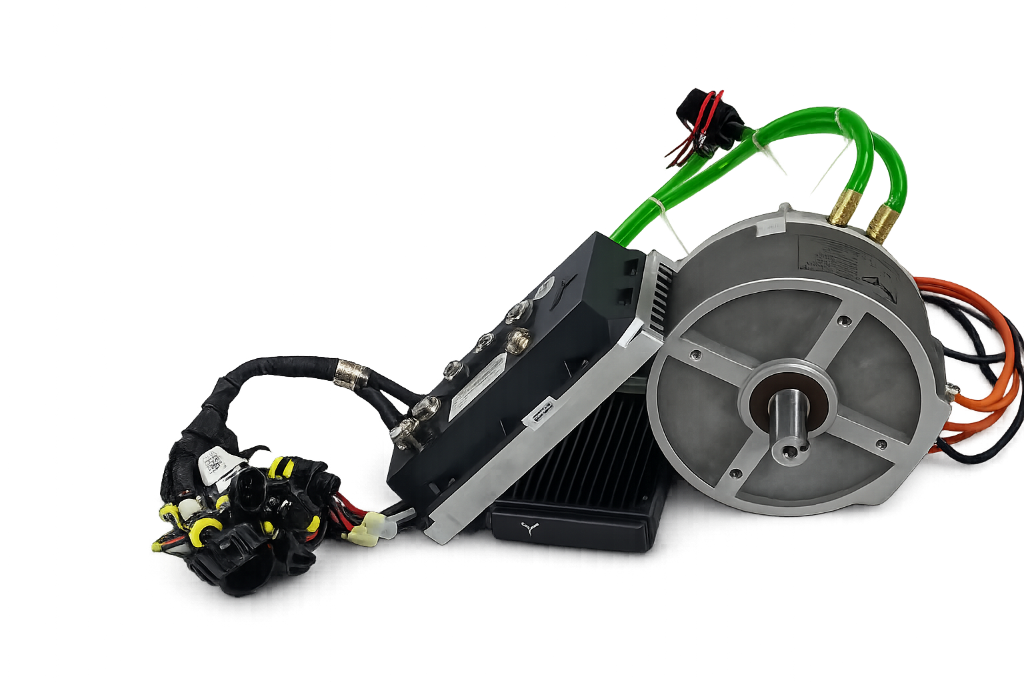

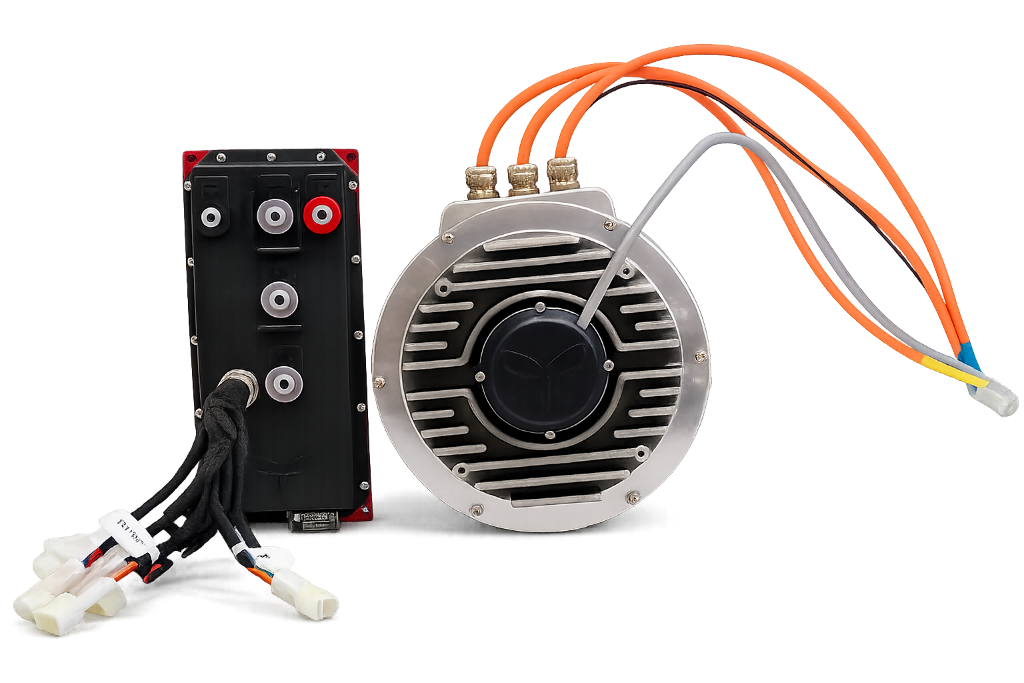

V1 SERIES
Compact Power for Light EVs
Ideal for two-wheelers, light three-wheelers, golf carts, and AGVs
V1 AC (Air Cooled)
Air Cooled
Voltage Options:
48V / 60V / 72V
Peak Power:
Up to 7kW
Peak Torque:
Up to 36Nm
Efficiency:
Up to 95%
IP Rating:
IP67
Encoder:
Magnetic Encoder
Applications:
Two-wheelers
Three-wheelers
Golf Carts
Light AGVs
Electric Boats
V1 LC (Liquid Cooled)
Liquid Cooled
Voltage Options:
48V / 60V / 72V
Peak Power:
Up to 9kW
Peak Torque:
Up to 40Nm
Efficiency:
Up to 95%
IP Rating:
IP67
Encoder:
Magnetic Encoder
Applications:
High-speed 2W
Go-karts
Dirt Bikes
Micro Tractors
Marine

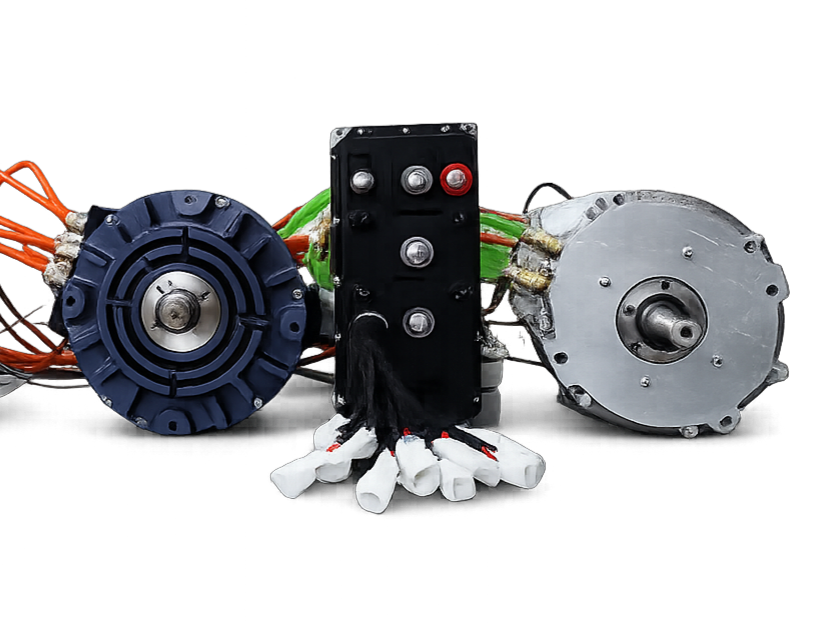

V2 SERIES
High Performance for Heavy-Duty Applications
Designed for L5 vehicles, industrial equipment, and high-power applications
V2 AC (Air Cooled)
Air Cooled
Voltage Options:
48V / 60V / 72V
Peak Power:
Up to 15kW
Peak Torque:
Up to 55Nm
Efficiency:
Up to 95%
IP Rating:
IP67
Encoder:
Magnetic Encoder
Applications:
L5 Three-wheelers
4-Seater Carts
Performance Vehicles
Tow Tugs
Light Industrial
V2 LC (Liquid Cooled)
Liquid Cooled
Voltage Options:
48V / 60V / 72V
Peak Power:
Up to 20kW
Peak Torque:
Up to 60Nm
Efficiency:
Up to 95%
IP Rating:
IP67
Encoder:
Magnetic Encoder
Applications:
L5 Cargo
6-8 Seater Carts
Heavy Tow Tugs
Forklifts
High Performance
